EM886 – 2F BALL NOSE for RIB PROCESSING

em886bem886

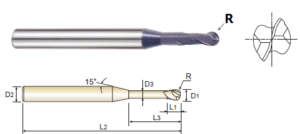

EDP R D1 D2 L1 L3 L2 D3
EM886004 R0.2 0.4 4 0.6 1 45 0.37
EM886960 R0.2 0.4 4 0.6 2 45 0.37
EM886961 R0.2 0.4 4 0.6 3 45 0.37
EM886005 R0.25 0.5 4 0.7 2 45 0.45
EM886962 R0.25 0.5 4 0.7 4 45 0.45
EM886963 R0.25 0.5 4 0.7 6 45 0.45
EM886964 R0.25 0.5 4 0.7 8 45 0.45
EM886957 R0.3 0.6 4 0.9 2 45 0.55
EM886915 R0.3 0.6 4 0.9 4 45 0.55
EM886006 R0.3 0.6 3 0.9 6 35 0.55
EM886916 R0.3 0.6 4 0.9 6 45 0.55
EM886917 R0.3 0.6 4 0.9 8 45 0.55
EM886918 R0.4 0.8 4 1.2 2 45 0.75
EM886919 R0.4 0.8 4 1.2 4 45 0.75
EM886008 R0.4 0.8 4 1.2 6 45 0.75
EM886901 R0.4 0.8 4 1.2 8 45 0.75
EM886965 R0.4 0.8 4 1.2 10 45 0.75
EM886920 R0.5 1.0 4 1.5 3 45 0.95
EM886921 R0.5 1.0 4 1.5 4 45 0.95
EM886923 R0.5 1.0 4 1.5 5 45 0.95
EM886010 R0.5 1.0 4 1.5 6 45 0.95
EM886924 R0.5 1.0 4 1.5 7 45 0.95
EM886902 R0.5 1.0 4 1.5 8 45 0.95
EM886925 R0.5 1.0 4 1.5 9 45 0.95
EM886903 R0.5 1.0 4 1.5 10 45 0.95
EM886904 R0.5 1.0 4 1.5 12 45 0.95
EM886926 R0.5 1.0 4 1.5 14 50 0.95
EM886927 R0.5 1.0 4 1.5 16 50 0.95
EM886966 R0.5 1.0 4 1.5 20 55 0.95
EM886012 R0.6 1.2 4 1.8 8 45 1.15
EM886905 R0.6 1.2 4 1.8 12 45 1.15
EM886928 R0.7 1.4 4 2.1 8 45 1.35
EM886014 R0.7 1.4 4 2.1 12 45 1.35
EM886929 R0.7 1.4 4 2.1 16 50 1.35
EM886930 R0.75 1.5 4 2.3 6 45 1.45
EM886015 R0.75 1.5 4 2.3 8 45 1.45
EM886931 R0.75 1.5 4 2.3 10 45 1.45
EM886906 R0.75 1.5 4 2.3 12 45 1.45
EM886907 R0.75 1.5 4 2.3 16 50 1.45
EM886932 R0.75 1.5 4 2.3 20 55 1.45
EM886933 R0.8 1.6 4 2.4 8 45 1.55
EM886934 R0.8 1.6 4 2.4 12 45 1.55
EM886016 R0.8 1.6 4 2.4 16 50 1.55
EM886935 R0.8 1.6 4 2.4 20 55 1.55
EM886936 R0.9 1.8 4 2.7 8 45 1.75
EM886937 R0.9 1.8 4 2.7 12 45 1.75
EM886018 R0.9 1.8 4 2.7 16 50 1.75
EM886938 R0.9 1.8 4 2.7 20 55 1.75
EM886939 R1.0 2.0 4 3 4 45 1.95
EM886940 R1.0 2.0 4 3 6 45 1.95
EM886020 R1.0 2.0 4 3 8 45 1.95
EM886941 R1.0 2.0 4 3 10 45 1.95
EM886942 R1.0 2.0 4 3 12 50 1.95
EM886943 R1.0 2.0 4 3 14 50 1.95
EM886909 R1.0 2.0 4 3 16 50 1.95
EM886910 R1.0 2.0 4 3 20 55 1.95
EM886944 R1.0 2.0 4 3 22 60 1.95
EM886945 R1.0 2.0 4 3 25 60 1.95
EM886967 R1.0 2.0 4 3 30 70 1.95
EM886946 R1.5 3.0 6 4.5 8 50 2.85
EM886947 R1.5 3.0 6 4.5 10 50 2.85
EM886948 R1.5 3.0 6 4.5 12 50 2.85
EM886030 R1.5 3.0 6 4.5 16 55 2.85
EM886911 R1.5 3.0 6 4.5 20 60 2.85
EM886968 R1.5 3.0 6 4.5 25 65 2.85
EM886969 R1.5 3.0 6 4.5 30 70 2.85
EM886970 R1.5 3.0 6 4.5 35 80 2.85
EM886949 R2.0 4.0 6 6 10 60 3.85
EM886950 R2.0 4.0 6 6 12 60 3.85
EM886040 R2.0 4.0 6 6 16 60 3.85
EM886912 R2.0 4.0 6 6 20 65 3.85
EM886913 R2.0 4.0 6 6 25 70 3.85
EM886971 R2.0 4.0 6 6 30 70 3.85
EM886972 R2.0 4.0 6 6 35 80 3.85
EM886973 R2.0 4.0 6 6 40 90 3.85
EM886974 R2.0 4.0 6 6 45 90 3.85
EM886975 R2.0 4.0 6 6 50 100 3.85
EM886050 R2.5 5.0 6 7.5 16 60 4.85
EM886951 R2.5 5.0 6 7.5 20 60 4.85
EM886952 R2.5 5.0 6 7.5 25 70 4.85
EM886953 R2.5 5.0 6 7.5 30 80 4.85
EM886976 R2.5 5.0 6 7.5 35 80 4.85
EM886060 R3.0 6.0 6 9 20 80 5.85
EM886954 R3.0 6.0 6 9 30 90 5.85
EM886955 R3.0 6.0 6 9 40 100 5.85
EM886956 R3.0 6.0 6 9 50 110 5.85
